OTS optic with a wire holder application by Laserline diode lasers



Optics for Brazing

Brazing in car body construction and other applications

Brazing Optics

Due to the optimal adjustment of the spot to the process, Laserline’s optics allow for brazing seams that meet the high demands of the automobile industry. When brazing hot-dip galvanized zinc, for example, pre-spots ablate the galvanizing at the edge of the brazing seam and thus render high quality process results as well as high process speeds possible.

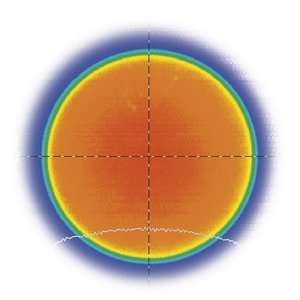

Round spot for welding application from an OTS optic shown as a heatmap by Laserline diode lasers
Rectangular spot for welding application from an OTS optic shown as a heatmap by Laserline diode lasers

Features

  • Round, rectangular and triple spot focus possible
  • Typical applications: brazing of metals in car body construction
  • Integrated wire feeder with regulated wire feed speed and gas supply
  • Seam tracking with supplementary wire and focus position adjustment
  • Add-on: tactile or camera-led seam tracking
  • Expansion level: cross-jet, protective glass monitoring, CMOS camera, crash sensor

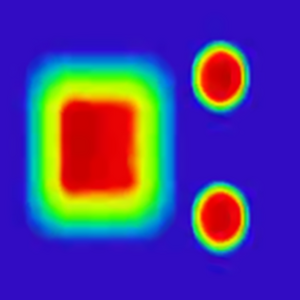

Example: Hot Dip Zinc Brazing with Triple Spot

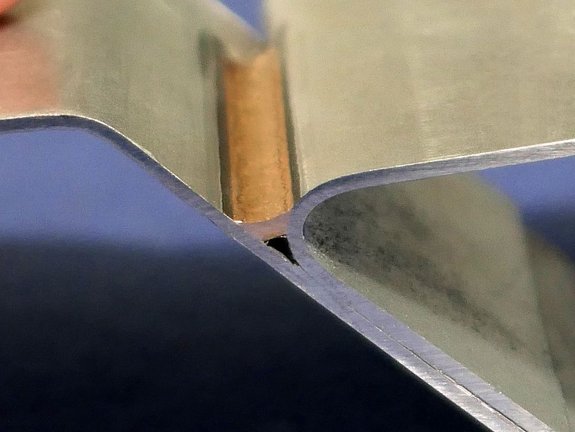

Galvanized sheets finished with laser brazing by Laserline diode lasers

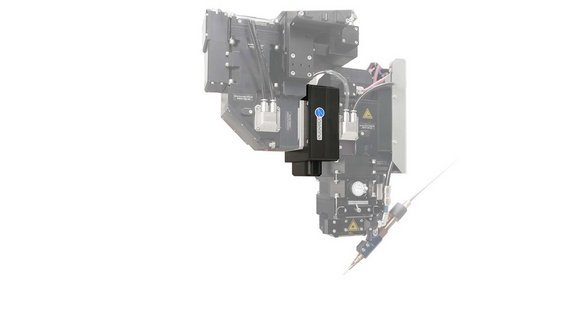

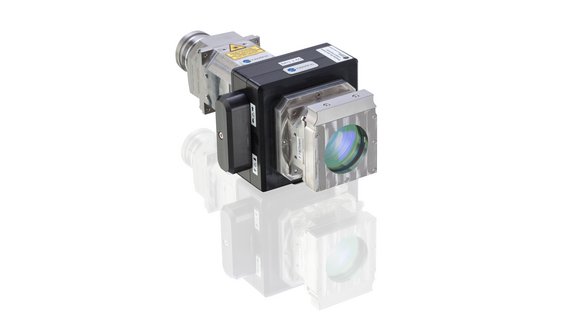

With Laserline Multi-spot Module

Laser brazing has long been firmly established in the production of car bodies. However, the increasing use of hot-dip galvanized sheet metal has recently led to problems: The number of micro-spatter and wavelets grew, forcing a reduction in process speed. Laserline has developed a pioneering solution with a variable multi-spot module in which secondary spots are positioned upstream of the main spot.

Learn more

Brazing Optics
